Redoing The Pump Mounts

Before I could put everything together, I needed to figure out a way to mount the new pumps. Unlike the old transmissions, the pumps are separate from the motors. I decided to make one plate that holds the pumps directly beneath the seat.

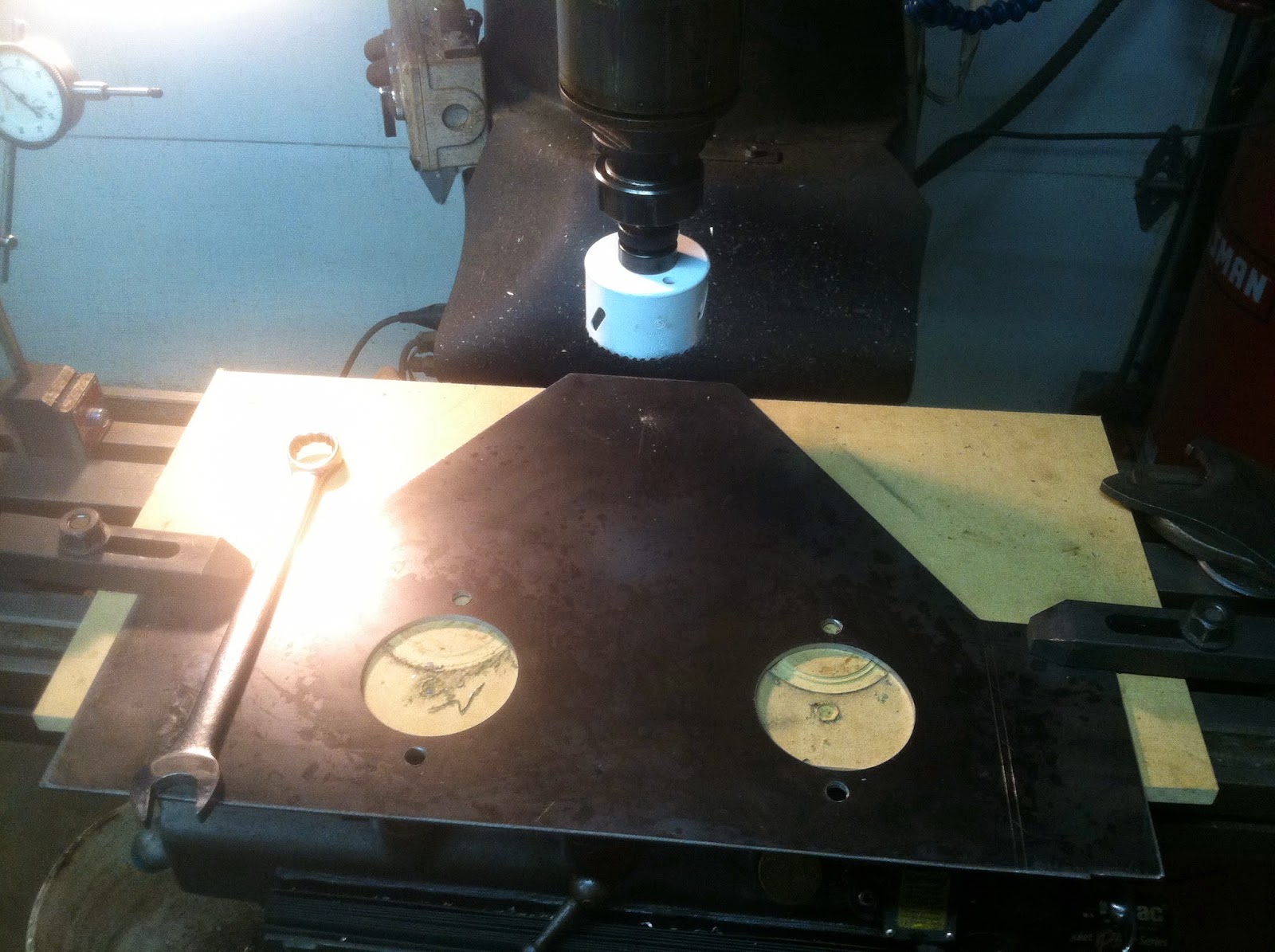

Drilling the pilot holes for the pumps. Offset for the linkage.
Used my press to bend the edges.

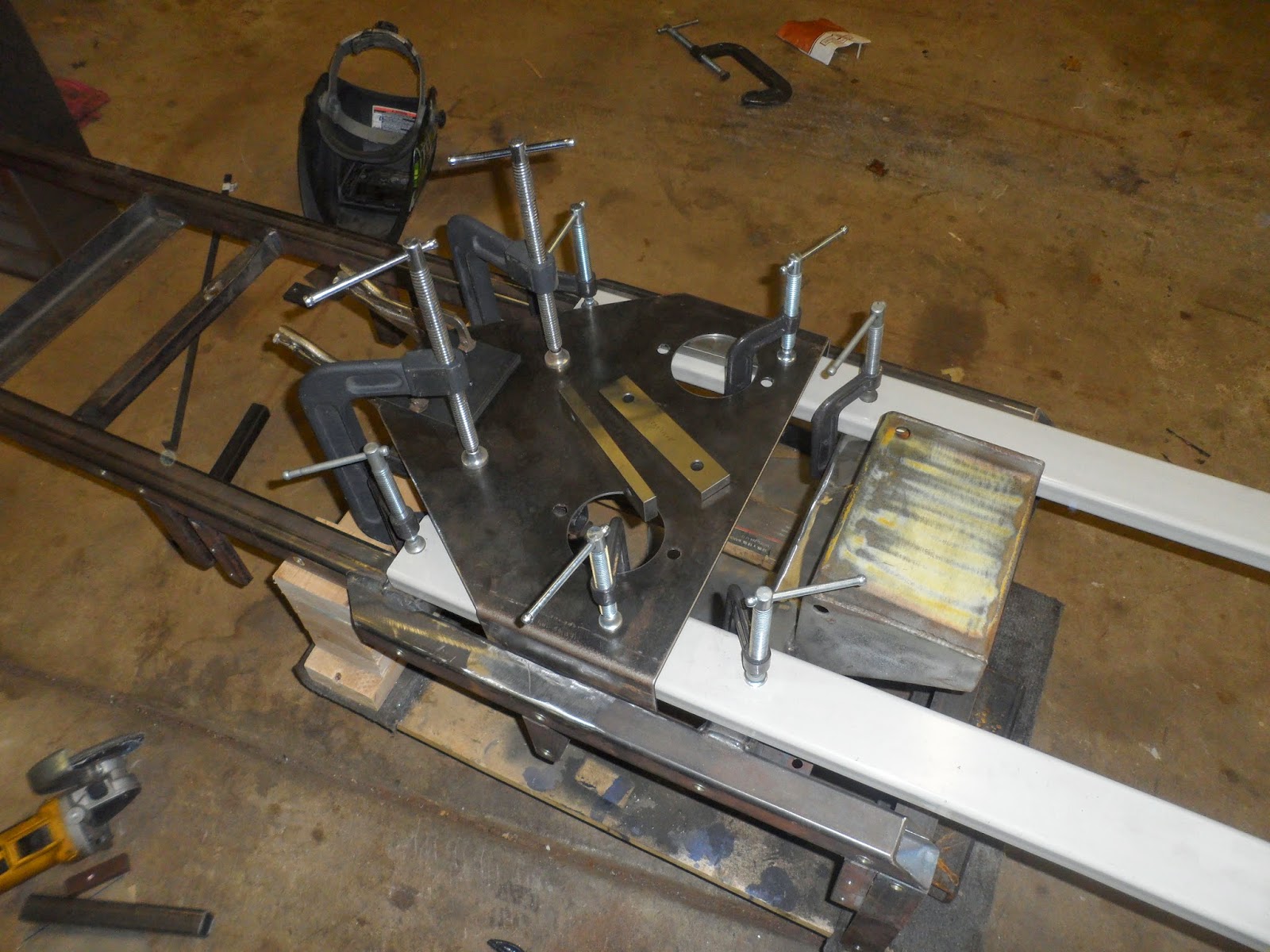

Welding it to the upper frame. This is the bottom of the frame.

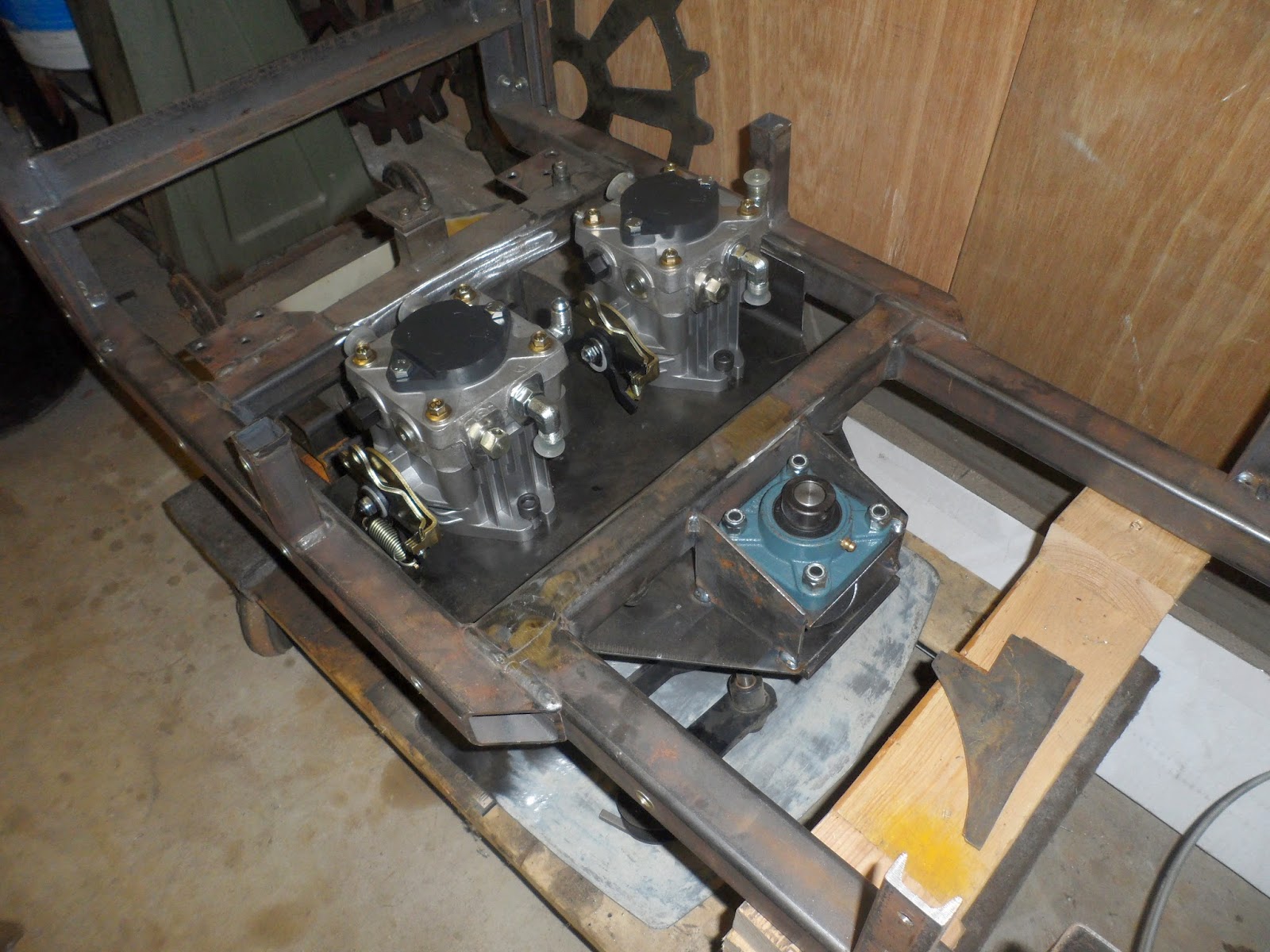

The flange pulley is for the jackshaft. The pump pulleys are kind of low so I wanted to keep the engine belt as high up as possible for the plow parts.
